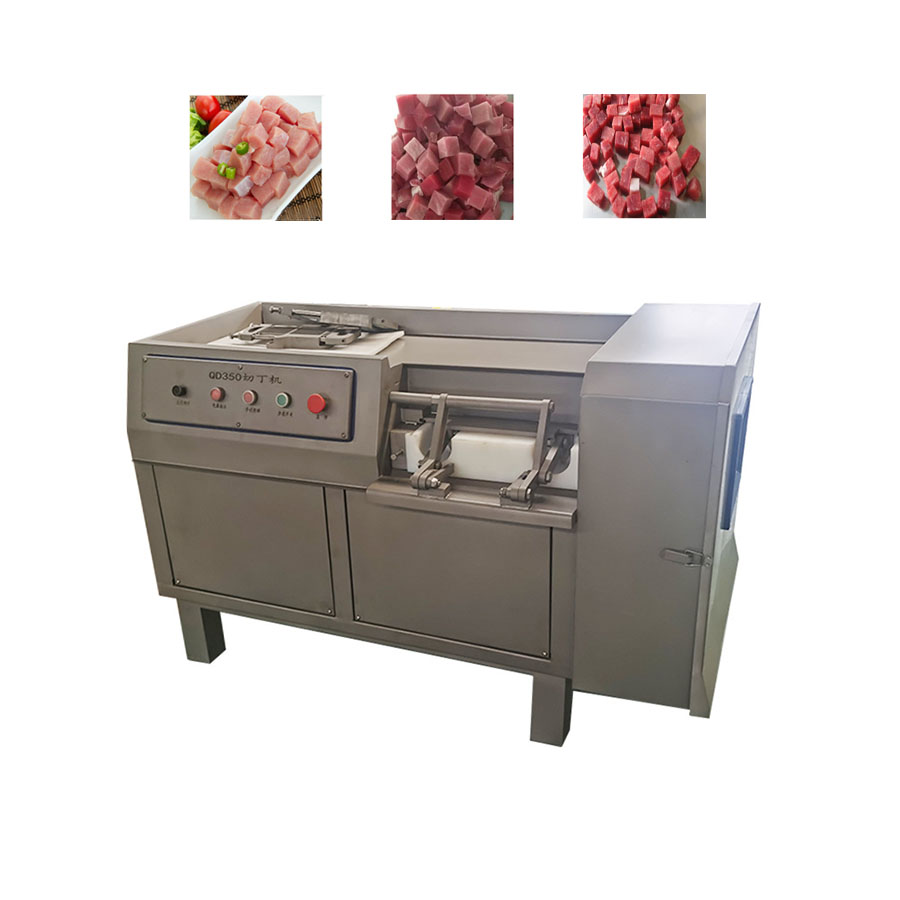

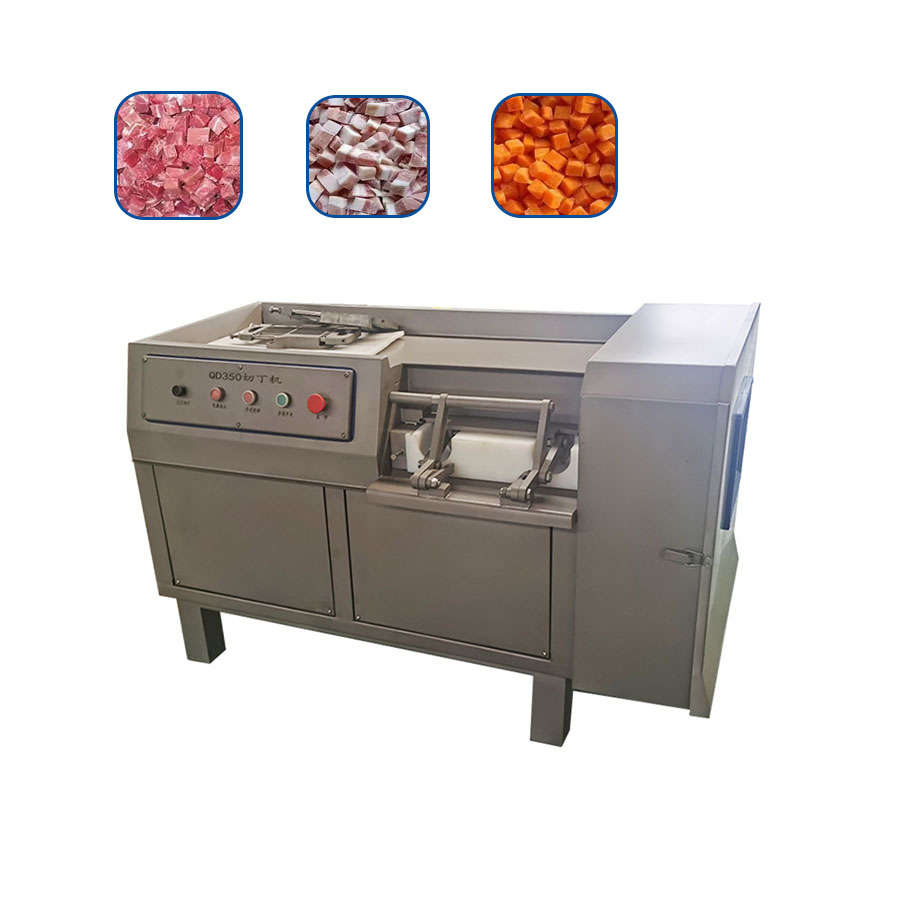

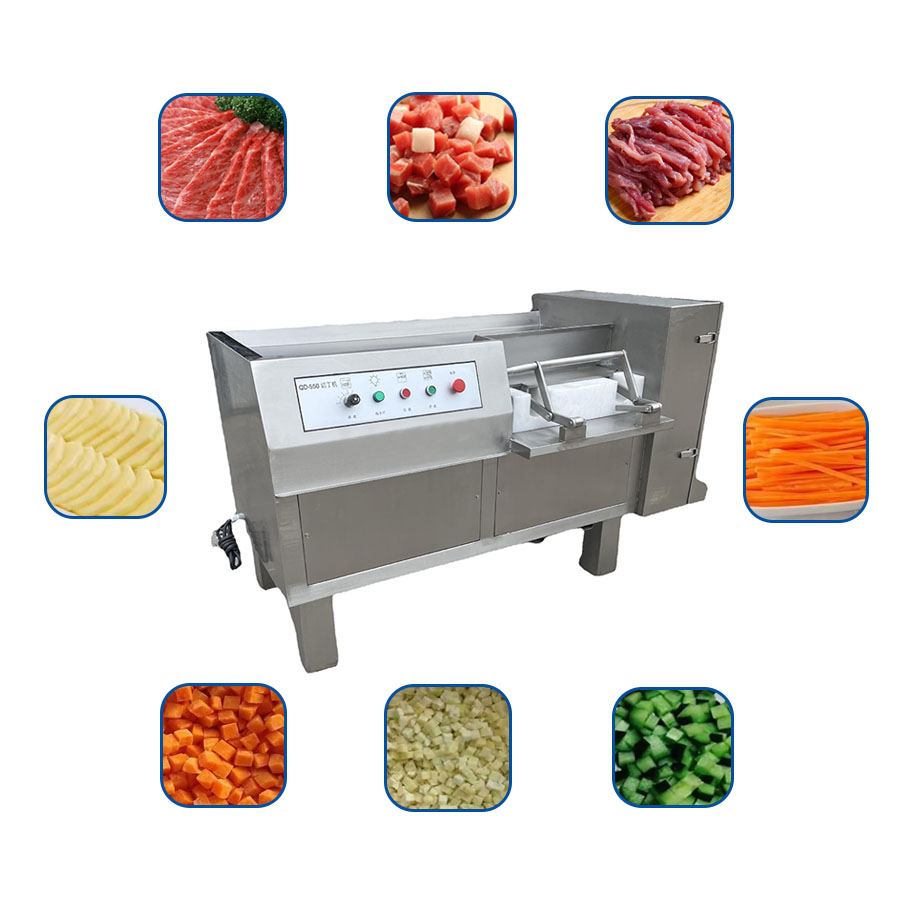

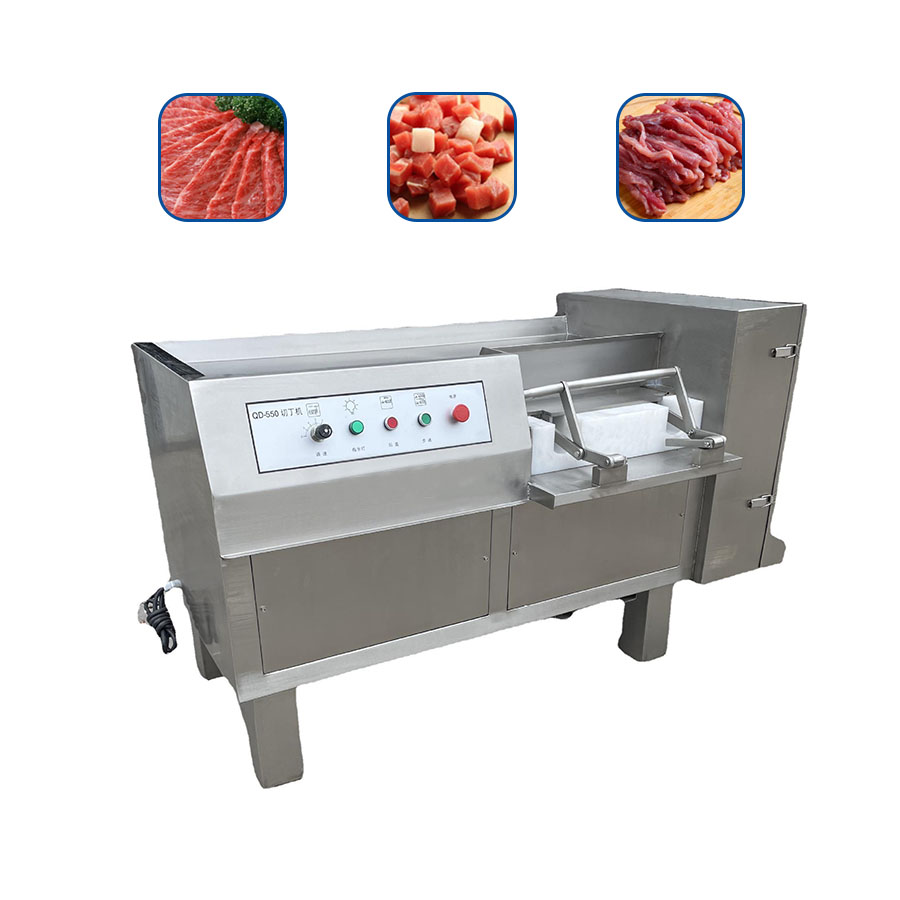

Multi-functional meat dicer machine

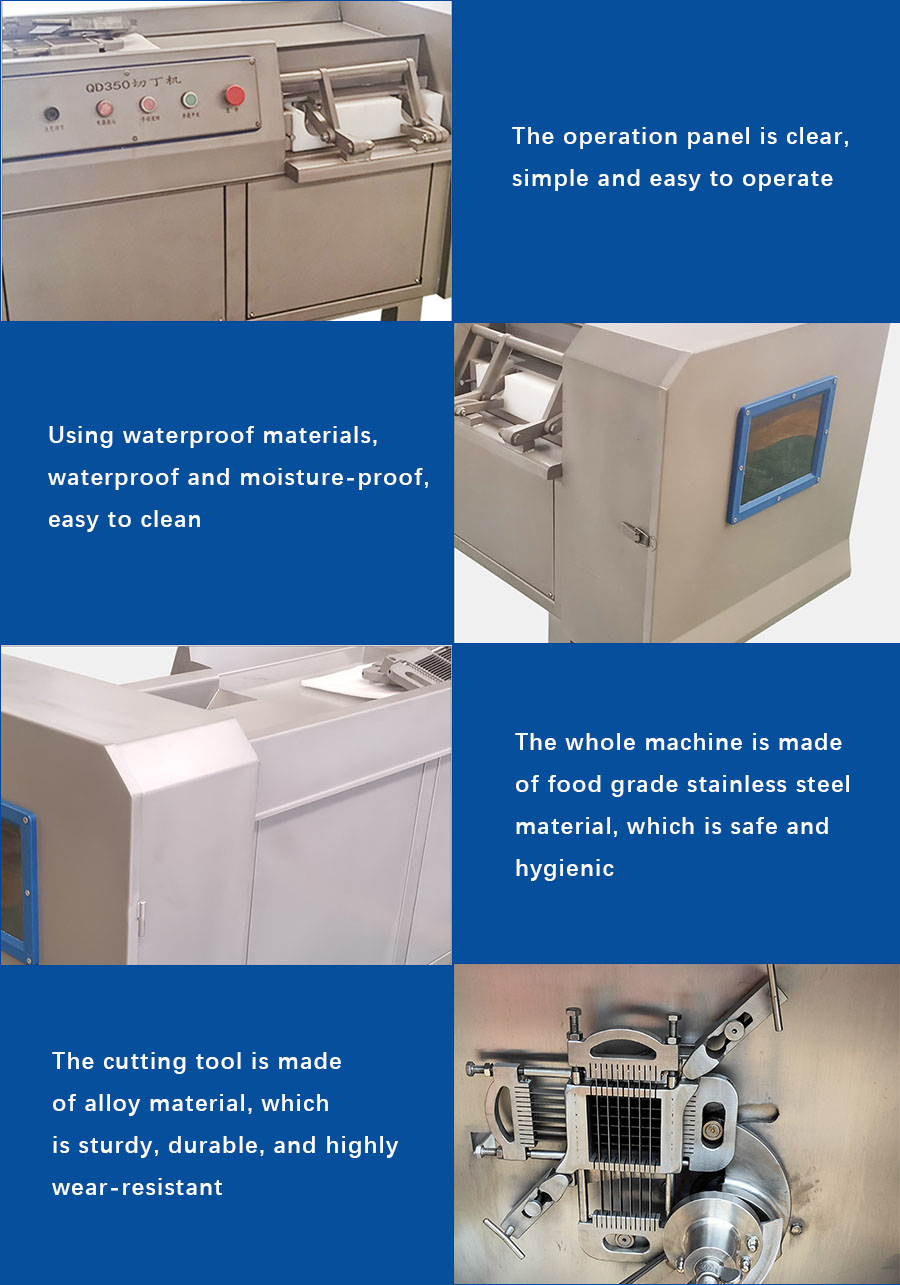

Multi-functional meat dicer machine is simple in structure,  made of food grade stainless steel, and the cutting blade adopts double-edged cutting, with high work efficiency. The diced meat size cut is 3MM-30MM. The blade is specially processed to be sharp and durable, making it an excellent equipment in food processing.

The machine can cut half frozen meat, fresh meat, cooked meat, tofu, carrot, potato and other root vegetables. Adjust the cutting thickness knob to change the pushing speed of the push rod to meet the requirements of different cutting thickness.
The machine can adapt to the normal cutting of meat from – 5 ºC to normal temperature, and can cut the meat into dices, slices and strips. It can cut frozen meat of – 3-4 degree into diced meat at one time.This equipment is suitable for fresh supermarkets, vegetable processing, central kitchens, restaurants, meat processing plants, canteens, etc

Main features:

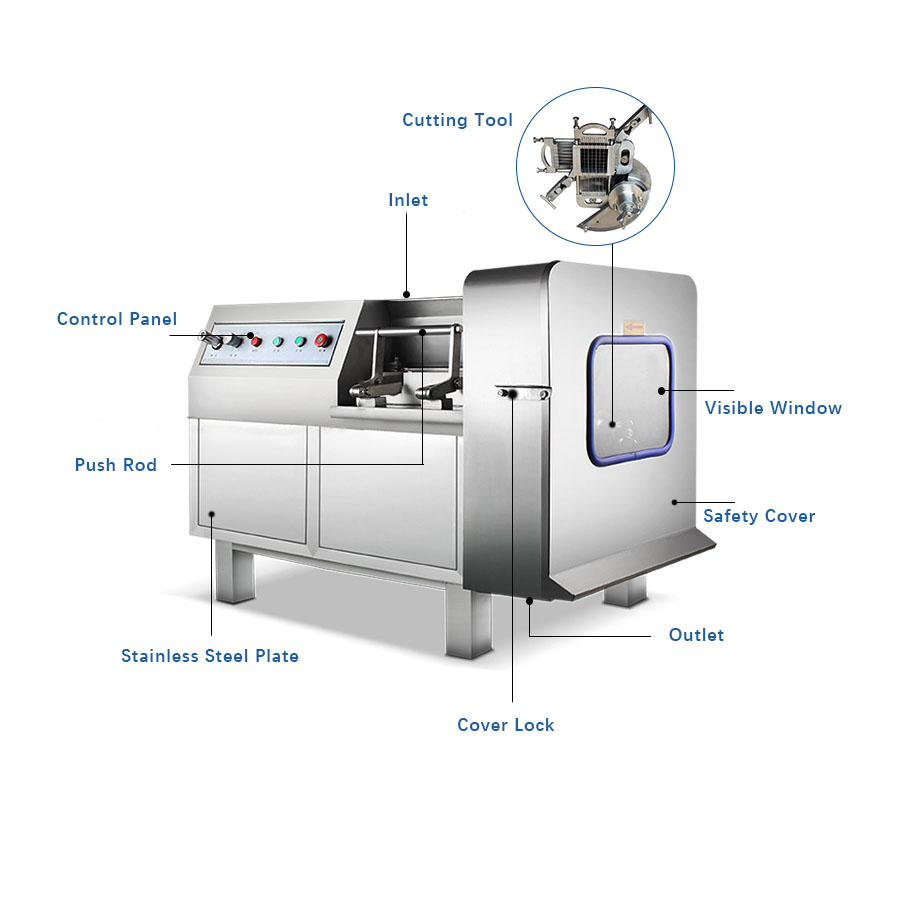

1. Adjusting the thickness cutting knob allows for stepless speed regulation of the push rod to meet different cutting thickness requirements
2. Adopting a pre pressure design to ensure even distribution of diced meat during the cutting process
3. When cutting with a single blade, the meat push rod moves in steps to ensure the correct cutting size
4. Cut diced meat with a minimum size of 5mm and a maximum size of 30mm

Technical parameters:
Model: HLXW-QD350
Production capacity: 250-300kg/hour
Cutting grid size: 4/5/6/7/8/10/12/14/16/21/28/42/84, randomly selected by the user
Cutting groove size: 84 × 84 × 350mm
Power supply: 3kw
Oil pump motor power: 1.5kw (imported)
Reducer motor power: 1.5kw (German made motor reducer) Siemens Electric, Omron relay
Dimensions: 1880 × 820 × 1280mm
The data is for reference only, and the actual model measurement shall prevail
